Fort Largs

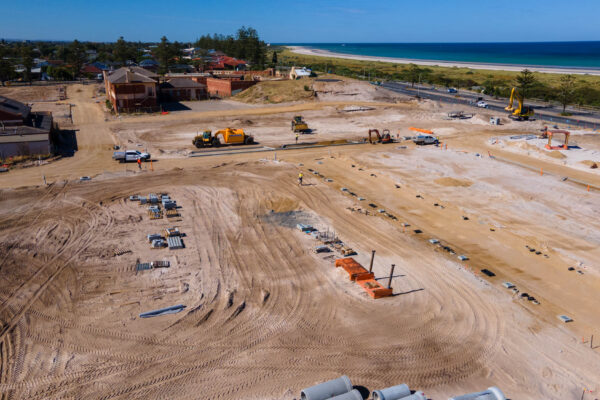

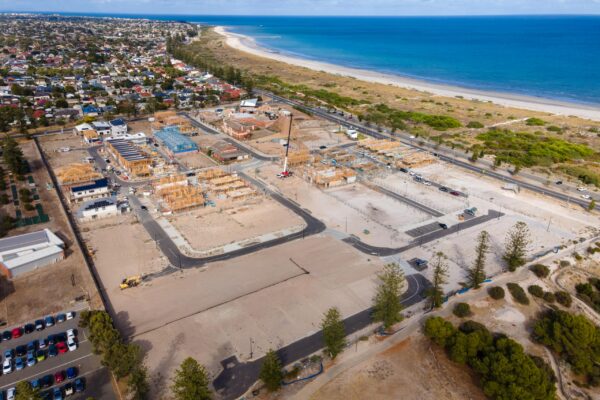

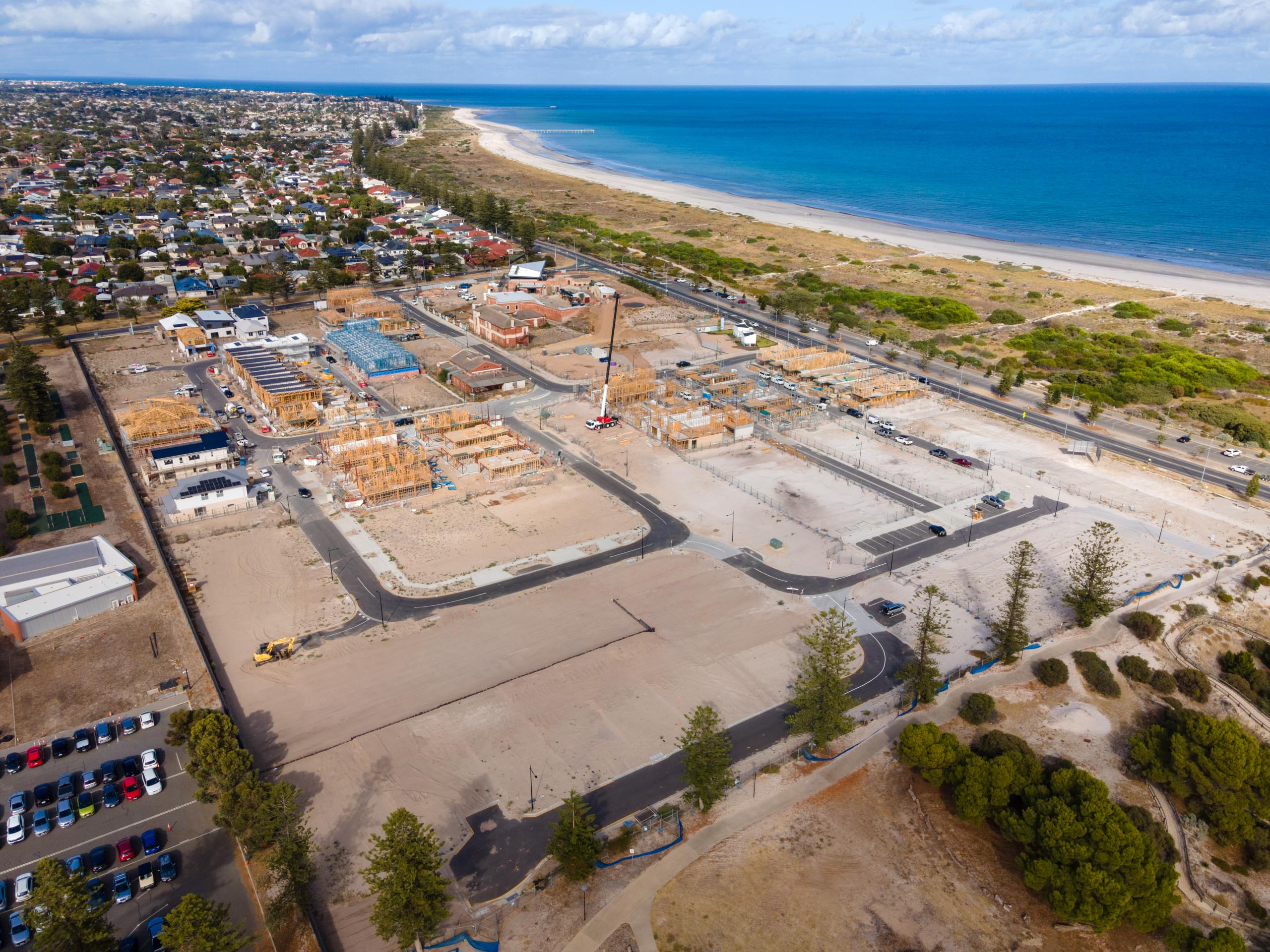

Fort Largs Development is a 150 Lot Development at the old Fort Largs Police Training Barracks.

190mm Sewer installation down Strathfield Terrace – DIT Road

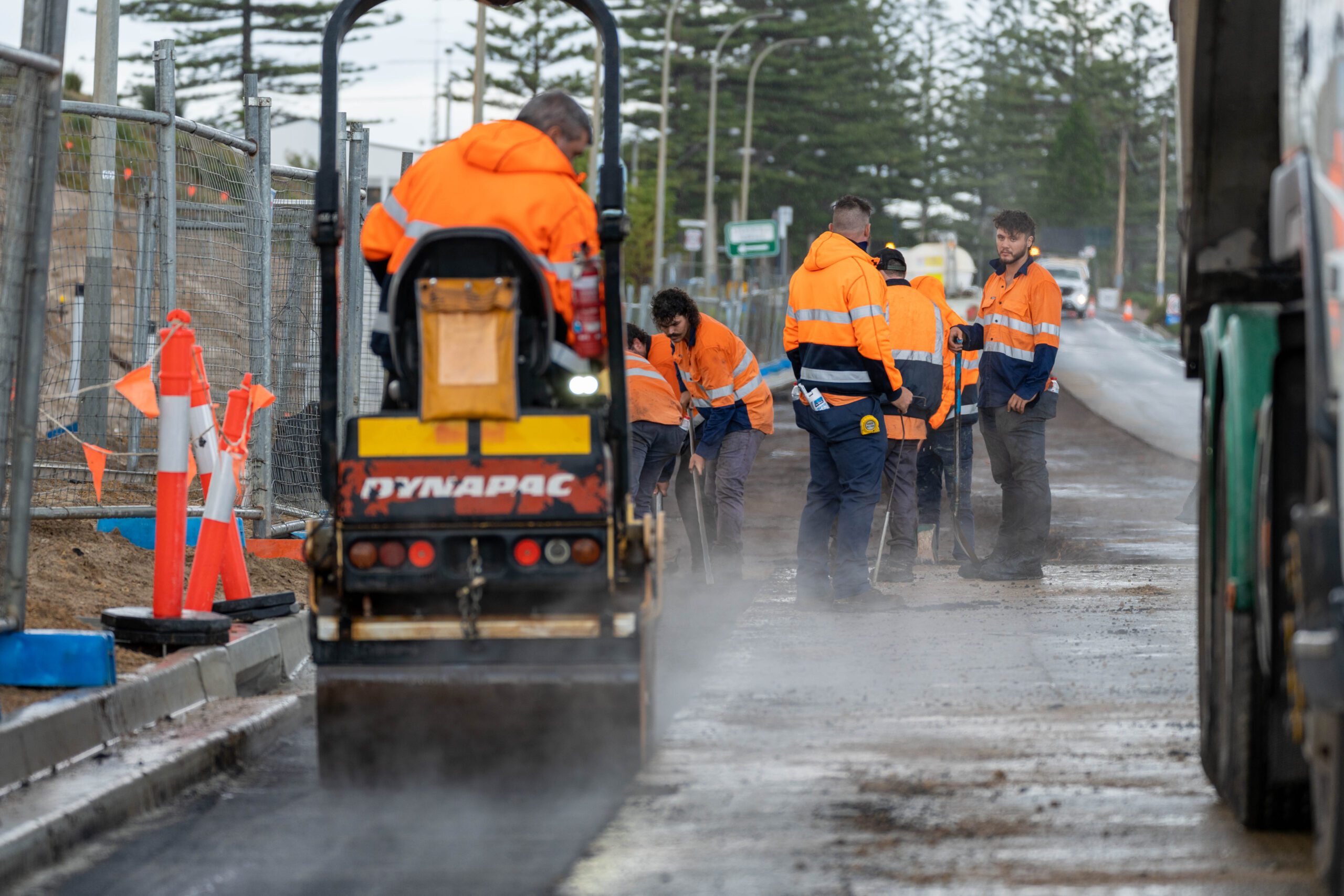

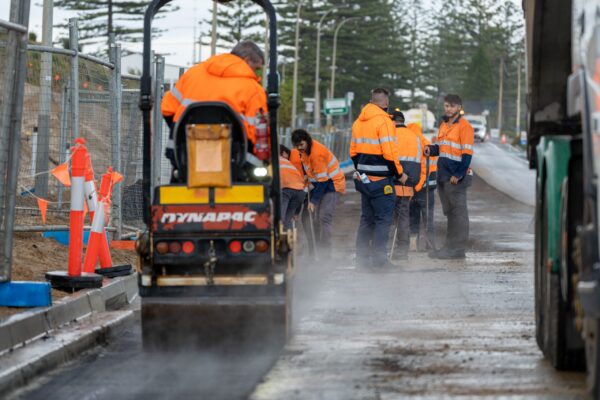

Each day the opened trenched was surveyed and backfilled so that the road could be used by traffic
Use of Shoring boxes due to sand

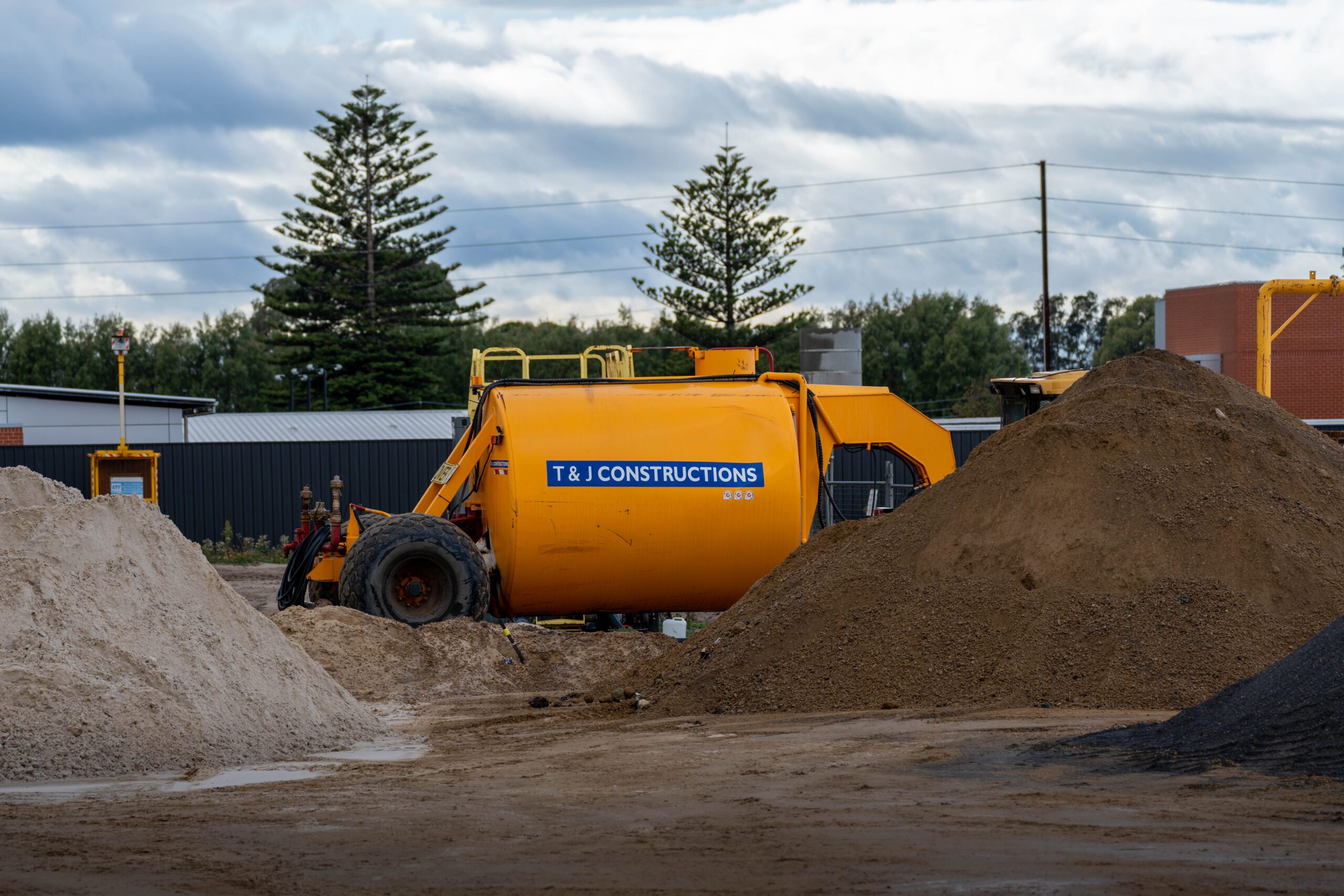

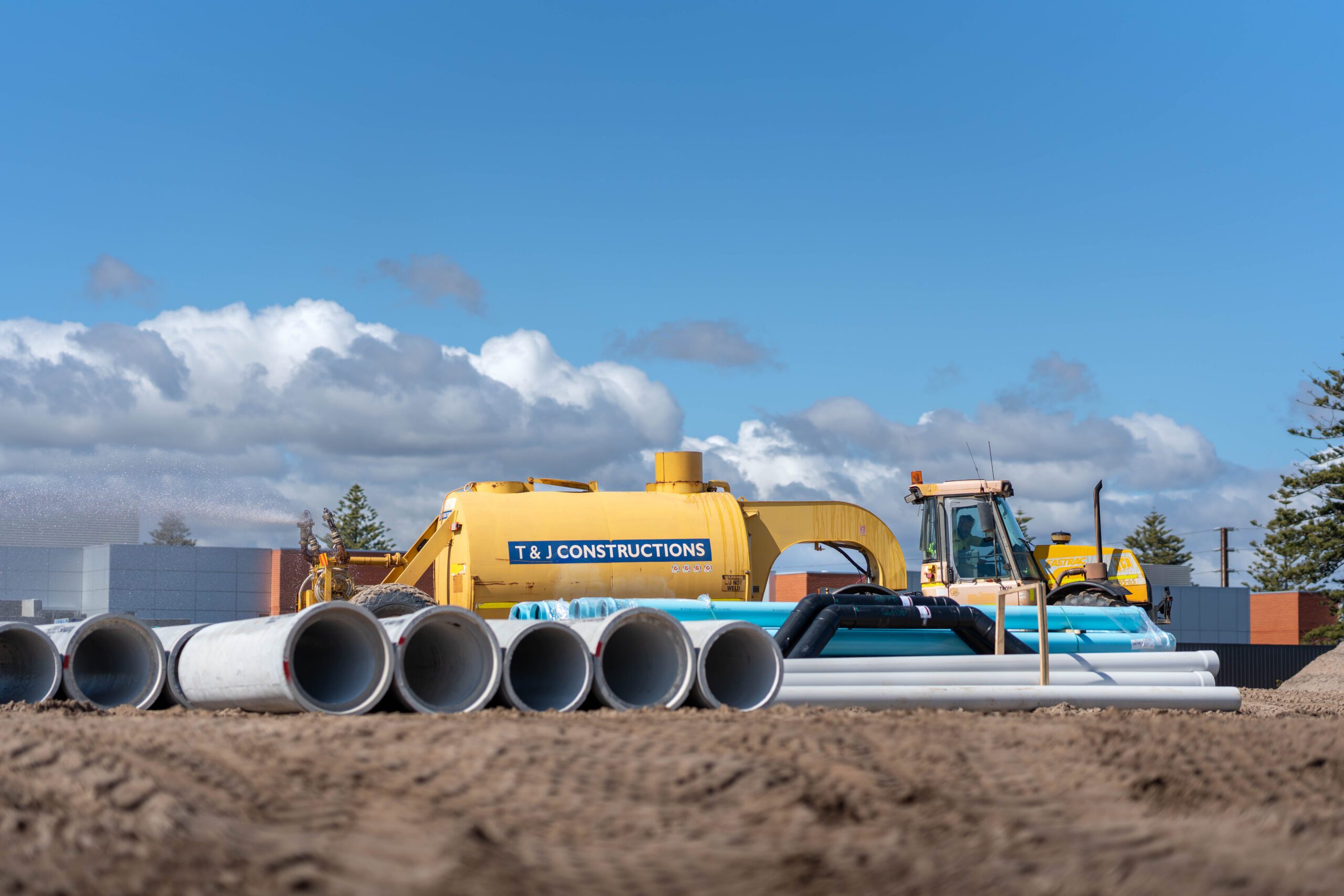

Use of Vac truck for locating services
Depth started at 2.6m rising to 1.9m
Due to the sand the sewer pipe required more protection, geofabric was placed on the pipe bed and ran up the sides of the trench. Once the pipe was laid and backfilled the geofab was folded over the top to wrap it like a present, protecting the pipe for as much sand as possible – this method was used for the entire project.

Sewer connections to 82 lots
600m of 150mm pipe
400m of 225mm pipe
210m of 125PE pump main
4 manholes hyrdro tested with ferropre and double mastic with tar paint and primer
Depth of Services ranged from 6m to 1.6m
MSJ’s installed – 11
IO’s installed – 7

Sewer connections to 34 lots
165m of 150mm sewer pipe
Manholes – 1
MSJ’s – 1
IO’s – 3
Depth 3.2m to 1.8m
Laying away from existing 150mm sewer from Stage 1B, depth ranged from 3.2m to 1.8m

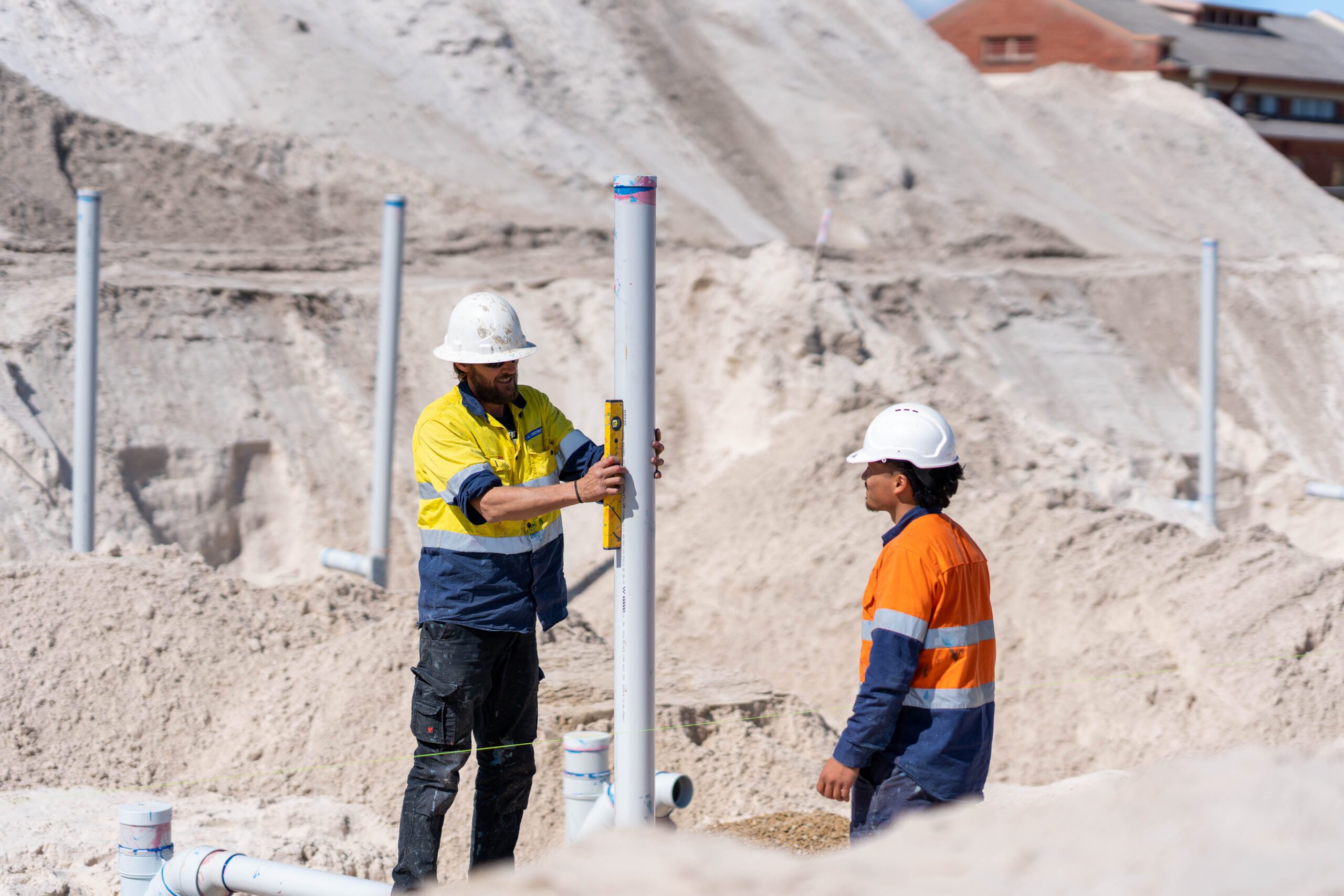

% existing OB risers to dig down on and connect into the lots
2 permanent IO ends
1 temp IO end
Present wrapping method used for backfilling sewer
